Modern gauge kits look like a plug-and-play job right up until the first needle reads backward or the temp gauge pins itself at maximum before the engine has even had a chance to warm up. The actual problem is what separates a kit buy from a working gauge cluster in a car that's now pushing 50 years old.
The 240Z was built from the factory around a voltage-regulated cluster, resistance-based senders and wiring that was never intended to support modern electronics. Swap in a modern gauge set without accounting for any of that, and erratic readings are almost a guarantee. The resistance ranges between old senders and new ones almost never match up. The aging wiring tends to bleed voltage before it ever reaches the gauge. Tach output from a modern ignition system can send an analog needle into full chaos - the needle bounces all over the place or dies outright.
All the layers need to be worked through in order (senders, power supply, signal integrity and physical routing), and every bit of that has to happen before the ignition ever gets turned. Each layer has a direct effect on the others, and when something goes wrong, that chain reaction can be quite hard to trace back to its source after everything is already wired up. A shortcut on any one of them just moves the problem further along and turns straightforward troubleshooting into a much bigger mess. Out-of-order work is probably the most common mistake I run into on classic gauge builds.
Z owners who take their time with this end up with a gauge cluster that reads dead-on and stays that way for years. The ones who rush it end up with their weekends lost, phantom readings everywhere and a growing suspicion that every sensor they've ever bought is defective!

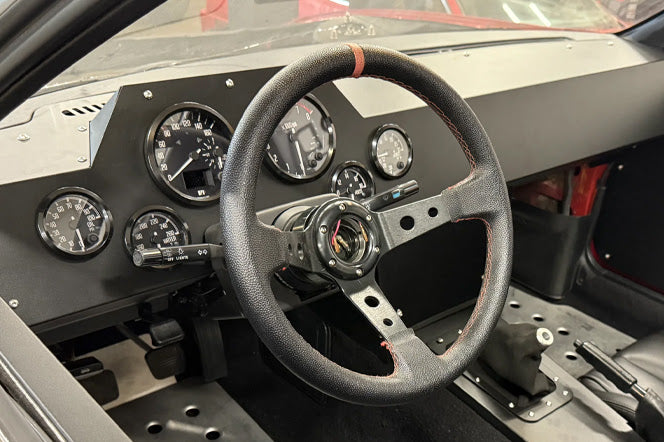

Let's go through how to wire modern gauges into your Datsun 240Z dash!
Table of Contents
The Problem With Stock 240Z Gauges
The factory gauges in a 240Z were never what you'd call precise instruments. The voltage regulator that feeds the gauge cluster has a tendency to drift with age, and once that drift sets in, every reading that relies on it gets dragged along with it. The printed circuits behind the dash don't hold up especially well over the decades either (corrosion works its way in slowly over time), and at that point, you're left with a fuel gauge that flat-out lies to you and a temperature needle that can barely get off the peg.
A rebuild is always an option, and plenty do go down that path. The problem is that replacement voltage regulators for these clusters are notoriously unreliable for accuracy, and a corroded circuit board can only be cleaned up so far. At some point, that time and effort go into hardware that was already pretty mediocre the day it left the factory.
An engine swap makes this even tougher. Modern engines use sensors that put out readings in a different format than anything that old gauges were ever built to read. A factory 240Z water temperature gauge has no way to make sense of a signal from a modern coolant temp sensor, so what you're left with is either a dead needle or a reading that doesn't tell you anything.
That's a big part of why most builders have switched over to modern gauges. Businesses like AutoMeter and Innovate build their units to work with today's sensors right out of the box, and they give you accurate data instead of a rough estimate. The wiring comes together pretty cleanly, and the end result is a setup that actually tells you what's going on under the hood. For a car of this age, that matters all the time.
Gauges That Fit the Stock Dash
Once you've decided to upgrade, size is the first detail to nail down. The 240Z's dash has an opening that's cut to a pretty particular dimension, and plenty of the gauge sets on the market just won't drop right in without a fair amount of work to the surrounding material. Before anything else, grab a measurement of that opening.
From there, the next call is whether you want to go with separate gauges or an all-in-one gauge cluster. Separate gauges do give you more freedom with the layout. But that stock dash opening still needs some careful planning and custom bracketwork to pull it off. An all-in-one cluster tends to be the cleaner way to go for most builds - it fills that opening as a single unit, so you don't have to piece together a handful of parts.
Dakota Digital has built a reputation in the Z community for just this reason. Their gauge clusters are made to fit right into the stock dash cutout with very little fuss, and they give you a modern readout without any need to rework the entire dashboard around it. For anyone who's after that factory-fresh look with up-to-date internals behind it, Dakota Digital is well worth a close look.
Bezel style is one more decision to make before you settle on anything. A lot of gauge faces and surrounds just don't belong inside a 1970s interior - they can look pretty out of place against everything else on the dash. Take a few extra minutes to go through photos of finished builds before you make your final call.
Before you finalize which gauges you buy, it's worth a quick check on whether your gauges need their own dedicated sending units to work. Plenty of modern gauges aren't compatible with the original 240Z sending units, and the swap has a few moving parts to it. The next section breaks down just what that looks like.
Replace the Senders to Match Your Gauges
With your gauges picked out, the next step is the senders. Most modern gauges are designed to work within their own resistance range, and the problem is that the original Datsun senders almost never line up with it, so a mismatch between the two is very likely.
This is where builds go sideways. Plug a new gauge into the factory sender, and you'll get a reading - it just won't be the right one. The needle might sit too high or too low, or it might barely move at all. In either case, the gauge itself is fine.
The three senders that usually need to be replaced are the fuel level sender, the coolant temperature sender and the oil pressure sender - and each one is in a different part of the vehicle. The fuel sender lives inside the tank and attaches through the top, the coolant sender threads into the engine block near the thermostat housing and the oil pressure sender is usually found on the side of the block near the oil filter. All three of them work on the same basic principle - each one puts out a resistance signal that has to match what your new gauge was built to read.
Gauge and sender compatibility is the single most common reason that new gauges give false readings on a 240Z build, and I see it quite a bit. A quick search through any of the big Z forums will pull up thread after thread of frustrated owners who were convinced their gauge was defective - just to find out much later that the sender was the actual culprit all along. Instead of assuming it's a wiring problem, take a few minutes to cross-reference the resistance specs on your new gauges against what the factory senders actually put out.
Get Clean Power and a Good Ground
With the senders taken care of, the next step is power. Modern gauges are far more sensitive to electrical noise and voltage fluctuations than the factory originals ever were. That old wiring has had fifty - plus years to build up resistance and corrosion and all kinds of degradation you can't even see - none of which the original gauges ever had a problem with. A new gauge will pick up on every bit of it, though.
Aged wiring is also one of the more common places where builds start to fall apart. A multimeter might show you a clean 12-volt source. But that same wire can behave very differently once it's under load. A gauge that pulls power through decades of compromised wire will give you inconsistent readings - that's the best-case scenario. At worst, it'll be so erratic that you'll never be able to trust what it's telling you.
The fix here is a dedicated relay circuit with a fused power feed that runs straight from the battery. A relay keeps the gauge's power supply clean and separate from everything else in the dash - it does take a little extra time to wire up, and I won't pretend otherwise. But a gauge that actually reads accurately is worth every minute of it. One that just looks pretty sitting in the dash is not.
The ground wire deserves just as much attention as the power feed. Run a dedicated ground wire straight to the chassis or to the battery negative - don't share a ground point with any other parts. A weak or shared ground path can introduce just as much interference as a bad power source. Modern gauge electronics are sensitive enough to detect it, and it's probably the least enjoyable issue to track down because it's hard to pinpoint - yet it's behind quite a few "my gauge is acting weird" complaints.
How to Get the Tachometer Signal Right
The tachometer deserves its own conversation because it doesn't quite work like everything else does on the dash. Most gauges just need a steady voltage reference or a sender unit to work - but the tach operates on a very different principle. It needs a clean signal pulse from the ignition system to read correctly.
If your 240Z still has the original distributor, you're in great shape. The tach signal wire runs directly to the negative terminal on the coil, and that's it. The analog tachometer on these cars was designed with just that signal in mind, so the two work together without any extra steps.
Engine swaps and aftermarket ignition systems are where it can get a little more involved. Modern ECUs do technically output a tach signal. But the waveform they produce tends to have a different shape and voltage from what an analog gauge is built to read. When it receives something outside of that range, the needle either bounces around erratically or just sits there and does nothing.
A tach signal adapter is the right fix here - it goes between the ECU output and the gauge and converts whatever signal the ECU puts out into something an analog tachometer will actually work with. Most adapters will also let you set the cylinder count manually, which is worth learning about since a four-cylinder and a six-cylinder don't fire at the same rate.
Some owners will try to skip the adapter and just hope it works out, which almost never ends well - it's a strategy I've seen fail more than it works. A quick search for "tachometer signal adapter" will bring up plenty of decent options at different price points, so take a few minutes to match one to your ECU before you wire anything up.
Run New Wires Through the 240Z Dash
The physical side of this job is not easy. The space behind a 240Z dash is already tight, and it only gets worse once you add the original harness, the heater box and whatever wiring you've already got in there.
Before pulling the dash out, take a few minutes to label every wire you're going to touch. All you need is a strip of masking tape and a permanent marker - it's that easy.
Any time you're routing new wires through the firewall, make sure to use a rubber grommet at every pass-through point. A bare metal edge will slowly cut through the wire insulation over time, and the electrical problems that come from that are some of the hardest faults to track down on a vehicle. Once the wires are all in place, wrap them in a split loom and zip-tie that loom right to your existing harness runs - it keeps everything clean, protected and out of the way.
Keep the new wires well away from the heater parts on the driver's side. That area puts out heat, and prolonged exposure can degrade the insulation or affect your sensor readings. Run those wires up and around that zone instead of straight through it - a little extra wire length is a small price to pay.
One last step - take your time when putting the dash back in. Pinched wires behind the cluster are one of the most common problems with this job, and it's easy to snag a wire somewhere it shouldn't be. Double-check your wire paths before committing to anything, and never force a panel back into place.
Fix the Erratic Readings on Your Gauges
The dash is back in place, and everything is wired up - before the engine fires up, we want to see how the gauges are going to respond. Do a quick visual check first and look for any wiring mistakes, loose connectors or a bare wire that may have moved around during reassembly.
Turn the ignition to the "on" position. Don't fire up the engine yet - it's one of the best moments in the whole process. Every gauge on the dash should lift slightly off its resting position as the system powers up and picks up a live signal. A fuel gauge, say, should swing to wherever your tank actually sits instead of staying pinned at empty or jumping straight to full.
If something looks off, work through one gauge at a time - it keeps the process under control and helps you track down where the problem is coming from instead of second-guessing the whole cluster. A gauge reading backward (like a fuel gauge that climbs when the tank is low) nearly always means you have the wrong sender type or a sender that's wired with reversed polarity. A temperature gauge already pinned at the hot end before the engine even runs is usually a sign of a bad ground on that circuit.
Bad grounds are behind more gauge problems than you'd ever guess. If a gauge is reading erratically or just won't settle on a number, the first place to look is the ground wire - trace it back to the chassis connection and verify that you have metal-to-metal contact at that point. A little bit of corrosion or a loose terminal is all it takes to corrupt the whole signal. Fix the ground first, then step back and reassess before you pull senders or swap out signal wires.
Build Your Dream Car
Get the senders dialed in, clean up your power supply, sort out the tach signal and get everything routed the way it needs to be - once the pieces are working together, then you'll have a build you can be proud of. The moment you turn the ignition and every needle sweeps to life all at once - it's a feeling that makes it all worth it.
For a car like the 240Z, a project like this is worth the effort on its own. These cars already have plenty going for them, and a build that's accurate and sharp-looking fits right in with everything else that makes them worth building. The work is there - and so is the result.
A build like this has a funny way of feeding itself. Once the gauges are dialed in and the dash finally looks the way it should, the rest of the car pretty soon starts to demand that same level of care. One step follows another - and before long, the whole project is pulling you forward. Most builds go just like this.
