Gauges in a classic Datsun Z are a great upgrade because they replace those tired old analog instruments with modern screens that actually work. Those factory gauges probably look great in there. After 40+ years of heat cycles and corroded connections, though, they're just decorative at this point.
The original Datsun electrical system is a whole different animal from what we have today. It runs on a different voltage and uses these weird resistance curves that nobody makes anymore. The power goes through a printed circuit board that's probably already halfway to dead. Most aftermarket gauges need specific electronic inputs to work properly. At the same time, your factory senders are still trying to communicate with 10-180Ω resistance values when the new screens want clean 0-100 PSI electronic inputs instead.
You also have a big choice to make about the dash layout. You can either stick with the stock setup or redesign the whole thing. Direct-fit clusters are nice because they use all of the factory mounting points and everything lines up just right. The downside is that they'll run you anywhere from $1,200 to $2,500. Universal gauges are way cheaper and give you tons more flexibility with placement and options. The trade-off is that you'll need to fabricate custom panels and do about twice as much wiring work.
The stock system and the modern electronics just don't want to work together for some valid reasons.
Let's go over how to upgrade your classic Z with modern instrumentation!
Table of Contents
Factory Senders and Your Modern Gauges
The original Datsun Z electrical system is pretty different when you look closer at it. The factory temperature sender in these cars works differently than anything that you'd find in a modern vehicle and operates on a resistance curve that reads about 290 ohms when the engine is cold and then slowly drops down to around 23 ohms once everything reaches operating temperature. Most gauges with LCD or LED screens on the market today have no idea how to interpret those resistance values correctly. The oil pressure sender has the exact same compatibility problem. The factory unit operates between 10 and 180 ohms. New gauges with electronic readouts are designed to read voltage from electronic pressure transducers instead. Trying to make the old sender work with the new equipment is technically possible, but a replacement is usually the better way to go for reliable readings.
The white and red power wire from your original harness is actually ideal for powering modern gauges. It's already routed right where you need it, and the wire gauge supports the electrical load just fine. The illumination wires are also usable if you want your new gauges to dim along with the rest of your dashboard lighting. Early Z cars have a small voltage regulator tucked inside the gauge cluster itself. This component takes your standard 12V supply and drops it down to 7V for the original gauges. Modern gauges with LCD or LED screens need all 12V to work correctly, so you'll need to address this during the conversion.
The printed circuit board behind your gauges has probably seen better days at this point. After four or five decades, the copper traces can start to crack and lift away from the board material. The gauges might work intermittently or display the wrong readings. Years of moisture exposure and heat cycling have taken their toll on these parts.
Model year variations add some more complications to the project. A 1971 240Z uses different connectors and wire colors than what you'll find in a 1978 280Z.
Pick Between Direct-Fit and Universal Gauges

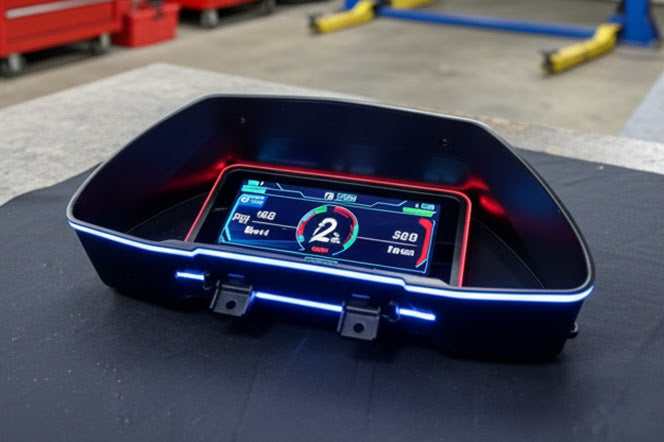

The first option would be to buy an electronic cluster from a company like Dakota Digital or Classic Instruments. These ready-made units usually cost anywhere from $1200 to $2500, and the nice part is that they're designed to fit directly into your factory dash opening without any big modifications.
The full clusters make sense because each one comes with its own dedicated wiring harness with every connection already mapped out for you, and the manufacturer labels everything correctly from the factory. Every wire has a place to go and takes most of the trial and error out of the installation. Weekend mechanics also choose these clusters for just this reason. The installation stays simple, and you're far less likely to make an expensive mistake.
The second option is to buy separate universal gauges and then arrange them any way you want. This takes more planning and extra work on your end, but you get total control over the final appearance. Some Z owners like to maintain that classic triple-gauge arrangement in the center console. Others want to go all-out and fill the entire dash area with modern screens.
Gauge diameter is actually something you'll want to think about. Standard gauges usually measure 2 1/8 inches across, and these work great for custom panels. The 2 1/16 inch gauges are slightly smaller, though, and they usually fit better in the existing holes in your center console if that's the path you plan to take.
The S30 chassis cars and the S130 models have different mounting points and dimensions. A cluster designed for a 240Z won't fit a 280ZX - even though the two cars share similar body lines. Always double-check the compatibility when you're ready to spend big money on any gauge setup. Bright afternoon sun and late-night drives demand different brightness settings, and most quality gauge sets have adjustable backlighting for this exact reason.
Power and Ground Setup for Your Gauges
Electronic gauges are much more sensitive to power problems compared to the old mechanical ones that originally came in your Z. The problem is that voltage spikes can destroy those expensive gauge screens in a matter of seconds, and then you're out hundreds of dollars with nothing to show for it. The best way to power these gauges safely is to tap directly into the switched 12V power that comes from your ignition circuit.
When you're making these electrical connections, you really need to make sure that you do it right with solid quality crimp connectors or soldered joints. Those quick twist-and-tape connections can fail pretty quickly. Each electronic gauge is going to draw somewhere between 0.1 and 0.5 amps of power during normal operation. So if you're planning to install a full set of six gauges, you'll need to install at least a 3-amp fuse in the circuit for that total load safely.
A lot of installations go wrong because installers try to use the factory ground points that are already in the car, and then they can't figure out why their gauge readings are jumping all over the place. You need to run a dedicated 10-gauge ground wire that goes straight to a clean area on the chassis. This gets rid of the ground loops that cause your readings to fluctuate all the time. The area behind the passenger kick panel has become a favorite location for most Z specialists when they're installing aftermarket gauges. This area stays clean and dry throughout the year, and it's just what you want for a reliable ground connection. Just make sure you sand that area down to the bare metal before you attach your ground terminal.
The original gauge ground in your Z is probably in terrible shape at this point anyway. Those printed circuit connections usually corrode after a few decades, and once that happens, you get all kinds of weird electrical problems. It's much better to skip that whole mess and create your own dedicated ground network for the new gauges. One more thing - if you're also planning to add LED accent lights along with your new gauges, those sensitive gauge electronics can be affected by the power fluctuations from other accessories on the same circuit. A simple voltage regulator will keep everything stable and will protect the money you've invested in those nice new gauge screens!
Compatible Sensors for Your Modern Gauges
The sensor side of the installation is next, and this part is where the process gets a bit more involved. Your original Datsun sensors are great, but they probably won't work with modern gauges. You'll have to swap them out for compatible units. The oil pressure sender is located just below the distributor on the driver's side of the block. As for the temperature sender, you'll find it on the thermostat housing near the front of the engine. These two locations are actually pretty accessible when you know where they are.
This part trips many DIY mechanics up. Your Datsun block has BSPT threads, but most aftermarket sensors have NPT threads. They look similar and they're almost the same size, but they're absolutely not compatible. You're going to need adapters to get them to fit right and not leak all over the place.
The installation takes a bit of care with these new sensors. Wrap the threads with Teflon tape, but leave the first two threads bare. Small pieces of tape can break off and wind up inside your engine without careful installation. Every sensor should be tightened to about 8-12 foot-pounds of torque. If you go any tighter than that, you're asking for problems with cracks or stripped threads.
The fuel sender is a whole different animal. Your factory unit operates on a range that goes from 89 to 3 ohms, but most aftermarket gauges are expecting something in the 240 to 33 ohm range. Those numbers are way too far apart to work together. The only way forward is to replace the entire sender unit for accurate fuel readings.
The wire routing also matters quite a bit for long-term reliability. You want to run all your sensor wires at least 6 inches away from the exhaust manifold because that heat will eventually destroy the insulation. The spark plug wires are another area to stay away from since the electrical interference can throw off your gauge readings. I always recommend sticking with the factory clips and grommets wherever possible because they do a great job of keeping everything organized and in place.
Modern Gauges with the Original Look
The wiring should be done now, and the gauges are ready for the dash. The downside is that those factory chrome bezels on your Z have become impossible to replace. One scratch or dent, and it stays permanent since replacements are pretty hard to find. Handle these original trim pieces with extra care.
Custom mounting panels are the best way to go if you need to install new gauges in your vehicle. Laser-cut acrylic or aluminum panels work great because they're designed to hold the universal gauges securely and tightly. The benefit is that your dashboard still looks stock from the driver's seat. Specialty shops sell these panels online, and they're fairly affordable. Local fabricators with laser cutters can also make custom panels if you want something different.
The next step is to pull out the original printed circuit board from behind the cluster. Be gentle with it, though, because that main connector on the board is actually really helpful. It makes a clean junction point where all your new gauge wires can connect to the car's original wiring harness - much cleaner than lots of random splices scattered around.
Each Z model has its own little challenges with aftermarket gauge installation. The 240Z speedometer sits very deep in the dash - much deeper than in the later cars. You'll probably need spacers behind your new gauge to bring it forward where you can see it properly. The 280Z gives you more space to work with. But the tachometer area can still be tight depending on the gauge you choose.
Metal gauges that touch your dash directly are going to rattle and get annoying fast. Foam tape or rubber isolators solve this problem - you just slip them between each gauge and the mounting panel. You don't want to hear that irritating buzzing sound every time you hit a bump or pull up at a red light.
The speedometer calibration is where the process gets a bit technical. You need to know your car's exact setup for the gauge to read correctly. The differential gear ratio is the most important information since Datsun installed different ratios throughout the Z production run. They used everything from 3.36 gears to 3.90 gears, depending on the year and model. Your tire diameter matters just as much for the calibration, so measure them or have the specs ready when you program your new speedometer.
Build Your Dream Car
You've just spent hours underneath the dashboard with wire strippers and a multimeter, and the results are worth every minute of that work. The temperature gauge in your classic Z used to bounce around all of the time like it had a mind of its own. But now it sits right where it should. That fuel gauge that turned every drive into a nerve-wracking game of "will I make it to the next gas station" has become equipment that you can count on. Your classic Z maintains the vintage style that makes everyone stop and stare at car shows. But the instrumentation behind that original dashboard face now works just like the gauges in any modern sports car.
Those hours and dollars you've put into that L-series engine rebuild deserve gauges that give you accurate readings every time. Performance parts need the right monitors, and the new displays deliver the precise information you need to protect your investment. The project takes some patience since you have to snake wires through the spaces that barely fit your hand. Once everything is connected and calibrated, though, you've eliminated the gauge problems that have plagued Z owners since these cars first rolled off the production line.
Give yourself a break-in period of about 100 miles once the installation is done. The engine heat and road vibration will put every connection you made to the test, and any weak points will show themselves early. The Z community online includes thousands of owners who have completed this exact upgrade, and most of them are happy to share tips about what gave them problems and what made the job easier.
