Wilwood brake kits are extremely popular with classic car owners, and it makes sense when you look at what you're working with from the factory. Most of these 1970s cars came with single-piston calipers and 10.7-inch rotors - pretty standard for the era. But they were not confidence-inspiring even when they were brand new. Modern driving conditions are a lot more demanding compared to what these brake systems were designed for. We're talking faster highway speeds, heavier traffic and a lot more frequent stop-and-go than anyone imagined back then. A Wilwood conversion takes care of those concerns. You get fixed multi-piston calipers that replace the old single-piston design, rotors that can reach up to 12.2 inches in diameter and aluminum construction throughout that drops your unsprung weight considerably.
The kit price is the starting point. Your particular setup will probably also need new brake lines, and you might need a different master cylinder, too. Your stock wheels might not even fit over the bigger calipers, and that means you might need new wheels as well. And if you can't do the install yourself, labor costs are going to add up fast. When you factor this together, your total cost can double very quickly (or more) from what you paid for the kit alone.
Another complaint that comes up frequently is that the pedal feel can be way too aggressive for everyday driving, since Wilwood designed these brakes for racing applications first and foremost. Not every upgrade has to cost this much to work well, either. Plenty of drivers have rebuilt their stock brakes and have been satisfied with the results, and others have saved quite a bit of money by swapping in cheaper alternatives like the popular Toyota four-piston calipers.
So you'll need to decide if this brake upgrade is the right move for your Z. Let's talk about it.
Table of Contents
Problems with the Stock 240Z Brakes
The factory brake system on a 240Z came with single-piston floating calipers, and they worked well enough when these cars were new. The front rotors measure just 10.7 inches across, and that's actually quite small compared to what you'll find on most modern cars.
Single-piston sliding calipers are pretty basic in how they work. One piston pushes a brake pad against the rotor, and as it does this, the entire caliper slides along a pair of guide pins to pull the opposite pad into contact with the rotor from the other side. Datsun chose this design back in the 1970s for two main reasons - it kept the manufacturing costs down, and it made maintenance much easier for owners who wanted to work on their own cars.
The main problems come up because we drive these cars very differently now than we did 50 years ago. Highways are faster, and the traffic is way heavier, and when you're in crowded areas, you're on the brakes much more. Every time you press down on that pedal, heat transfers directly into those small rotors, and there isn't enough time for it to escape before the next stop.
After you make a few hard stops back to back, heat fade starts to set in. The pedal feels softer under your foot, and you have to push down on it much harder just to slow the car down at the same rate. The system just can't dissipate the heat as fast as modern brakes generate it.
Maintenance problems also crop up over the years. The slider pins (which are what let the caliper slide back and forth) will seize up if you don't clean and grease them. Pistons can get stuck in their bores too, mostly after water and road salt have had years to work their way inside.
The original brakes on these cars are perfectly safe as long as you take care of them like you should and drive normally. Datsun designed them back when drivers were just commuting to work and taking weekend drives on empty back roads. They'll work fine for that sort of use. But if you like to push your car a little harder, or if you end up driving in situations that demand more from your brakes (like spirited canyon runs or aggressive highway merging), you're going to see pretty fast that they just can't handle it.
How the Wilwood System Works

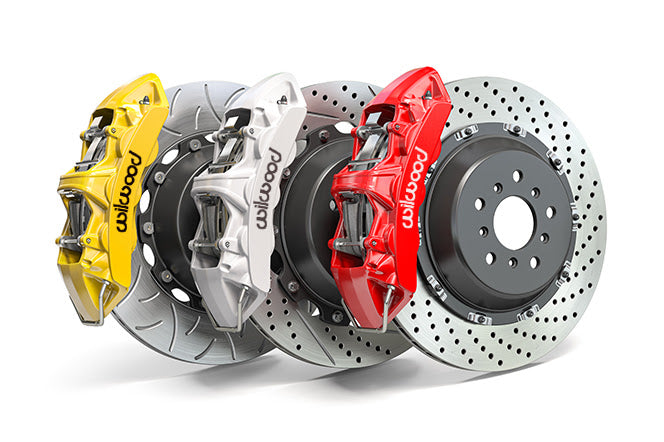

A Wilwood upgrade replaces your stock single-piston floating caliper with a multi-piston fixed design. Fixed calipers work quite a bit differently compared to what came on your car from the factory. Instead of sliding around on pins like the stock setup, they mount directly to the bracket and stay right where they are. They also have pistons on each side of the rotor instead of just one side. Those pistons clamp down together as you press the brake pedal, and that matters for performance.
Wilwood has a few different brake kits for the 240Z, and most of them are available with either four-piston or six-piston calipers. For streetcars, the Dynalite series is going to be your best option. These kits have the calipers, fresh rotors, the mounting brackets and all of the hardware you'll need to bolt everything together.
Your new rotors are going to be quite a bit bigger compared to what Datsun originally installed at the factory. The smaller option is an 11-inch rotor. But you can also go with a 12.2-inch rotor if you're after stronger stopping power. A bigger diameter helps you in two ways - it lets you brake harder at the wheel, and it gives you a lot more surface area for your brake pads to clamp down on.
Wilwood makes its calipers from aluminum instead of the cast iron that you'll find in most stock brake systems, and the weight savings add up fast. Each corner of your vehicle loses a few pounds and directly cuts down what we call unsprung mass - the weight that your suspension has to control. The less weight your suspension has at each wheel, the faster it can respond to changes in the road. Your car will handle better and feel more responsive, and your suspension parts will do their job in the way they were designed to.
Another big benefit of fixed calipers is that sliding pins aren't a part of the setup anymore. Sliding pins have a bad habit of binding up on you, and they also start to wear out as they age. A fixed design removes this headache completely. With a fixed caliper, each side presses against the rotor at the same time, and that means you get a lot more even pad wear, and your pedal feel is going to be noticeably better.
Multiple pistons also give you more total piston area that can press against the brake pads. With more piston area, you'll get a lot more clamping force on the rotor and that translates directly to shorter stopping distances. Another bonus is that the pedal will feel much firmer and will give you way better feedback about what is actually happening at the wheels.
Hidden Costs You Should Know
The Wilwood kit itself is your starting point for the total cost of this project. You're also going to need custom brake lines to connect everything, and those lines will run anywhere from $150 to $300, depending on your vehicle and what setup makes the most sense for it.
Your stock master cylinder probably won't be able to generate enough pressure for these new calipers. You'll probably need to add an upgraded master cylinder to your parts list if you want your brakes to work the way they should. Your proportioning valve might need some adjustment or a full replacement to help balance out the braking force between your front and rear wheels.
Installation costs are another part of your budget that you'll need to plan for. With the right tools and some experience under your belt, you can probably take care of the install in your own garage. But a lot of owners have a professional shop take care of it. Labor rates change quite a bit depending on where you live. But plan on adding at least a few hundred dollars to your total cost.
A front brake kit might cost you $1,200. But that figure only covers the kit itself. After you add in the other parts, you'll actually need to finish the job, and the total cost can climb to $2,000 or higher. Fitment problems are another common headache - they usually pop up right in the middle of an install and mean you'll have to order custom spacers or adapters just to get the parts to fit together correctly.
Rear brake conversions have a few extra challenges that you'll have to know about. The parking brake mechanism is probably the biggest one - most Wilwood rear kits don't use the same mounting points as your factory setup, so you'll need to adapt it or move it somewhere else completely. Getting the pieces right can eat up time and money. Balance is another big concern with rear conversions. Your new rear brakes need to match up well with whatever you have up front; otherwise, one end of the car could lock up before the other when you have to stop quickly.
You'll need some brand-new brake fluid after any big work on your brake system. Old or partially used fluid just won't cut it for upgrades like this - brake fluid absorbs moisture over time and can compromise your entire system. Budget for a quality bottle when you're planning your project because you don't want to save a few dollars here with a cheap brand. A brake bleeding kit is also worth having if there isn't already one in your toolbox - it makes the job go way smoother and helps you get much better results.
Two Popular Alternatives for Your Brakes
Wilwood brakes are excellent, and they're worth the investment if you have the budget for them. Of course, not everyone can afford them. Fortunately, you have two popular alternatives that land right in the middle - between your stock brakes and a full premium setup.
The first option worth looking at is the Toyota caliper swap. It's one of the most popular upgrades for a reason. Calipers from a 1979 to 1986 Supra or Celica bolt right onto your stock 240Z hubs without too much trouble. As far as brake swaps go, it's refreshingly simple and doesn't need much modification to work the way it should. You'll spend between $200 and $400 for the parts you need, and it comes out to just a fraction of what you'd pay for a full Wilwood kit.
You can also swap in parts from a 280ZX. The later Z-cars actually came equipped with bigger rotors and beefier calipers right from the factory. They still use the single-piston design, so compatibility works in your favor. This upgrade is simple to install, and the performance gains over the stock 240Z brakes are pretty obvious. You get to keep the simplicity of the original brake system, just with extra stopping power and much better resistance to brake fade when it matters most.
These two middle-ground options work well for street drivers who want better brakes, but they don't want to go overboard with the upgrades. Your braking performance is going to improve quite a bit, and you won't have to worry about the high price tag or the complicated installation that comes with a full Wilwood conversion. The Toyota swap, in particular, has become a favorite mostly because the parts are available just about everywhere. You can grab them at local junkyards for pretty cheap or order them online from dozens of different sellers.
Wilwood kits are going to cost you at least $800, and that's not counting shipping or any extra hardware you might need. You're probably looking at double or triple the price of either option that I mentioned. Weekend drives and maybe some mountain roads are what you're after, so these budget swaps are going to work well. They won't stop quite as hard as a full Wilwood setup. But they get you most of the way from stock performance to premium performance without draining your bank account.
Daily Brake Feel and Maintenance Costs
The pedal feel will change, and it does take some time to adjust to the difference. Your stock brakes have a smooth, progressive feel that lets you work into each stop nice and slow. Wilwood setups are much firmer, and they respond a lot more aggressively to even small movements from your foot. Plenty of drivers wind up preferring that direct, immediate feedback after they've spent some time behind the wheel with them.
Maintenance costs are going to work out to be a bit high when you're running Wilwood brakes. Replacement pads will cost you between $80 and $150 per set, and it's definitely a step up from the $30 to $50 range you'd normally pay for stock pads. And you can expect to see more brake dust building up on your wheels too - performance pads just create more of it as they wear down.
Parts availability is another factor worth knowing about when you're maintaining your Wilwood brakes. Your local auto parts store probably won't have what you need just sitting on the shelf. Wilwood isn't a mainstream brand, so most neighborhood shops don't stock their brake parts as regular inventory. So you'll need to order what you need online and wait for shipping, or make a trip out to a specialty performance shop that actually carries these parts in stock. You can't simply run out on a Saturday afternoon and grab a replacement when something wears out. A little bit of planning goes a long way with these brakes, so watch the pad thickness and the rotor condition so you're not left waiting on parts to arrive if you actually need to be on the road.
Cold mornings have one more quirk. The pedal will feel stiffer than usual, and you'll need to apply more pressure until the brakes have had a few minutes to warm up as you drive. After a bit of heat builds up, the pedal goes back to normal, and everything works just fine. Those first few stops on a frosty morning are going to feel quite different from what you'd get with a standard street brake setup.
Build Your Dream Car
With the options out there, it's hard to nail down one perfect answer for every driver. What makes sense for one person and how they drive their Z could be different from what another owner actually needs. A well-maintained stock brake system (or a budget-friendly Toyota swap) will cover most of what you'll run into on the street with a 240Z. Either one of these routes gives you reliable, confident stopping power without draining your bank account or forcing you into tough modifications just to get everything mounted correctly. But if mountain roads are a normal part of your week, if that firm, race-ready pedal feel matters to you or if premium parts are just what you want for your build, Wilwood brakes start to make a whole lot more sense. The performance bump is real, and the confidence that comes with the top-tier hardware can justify the expense for the right owner.
It's worth being honest about how you actually drive your car and what you're willing to spend on it. A custom build can make it tempting to get excited about upgrades that sound great on paper. But they might not line up with what you need from your Z. Think about where most of your drives happen, how hard you push the car on a normal basis and whether a Wilwood brake setup will actually change anything for the way you use it.
