FAN SHROUD | DATSUN | 510

Upgrade your cooling system in a tight space with Skillard’s precision-built offset aluminum fan shroud.

Our 510 project has the KA24 swap, leaving us with few options for fitting a pull cooling fan. So naturally we needed to fabricate a solution for our build. We understand that many different swaps are out there, so please see below for some of the dimensions of the shroud and fan to help you determine if this setup will fit your engine swap.

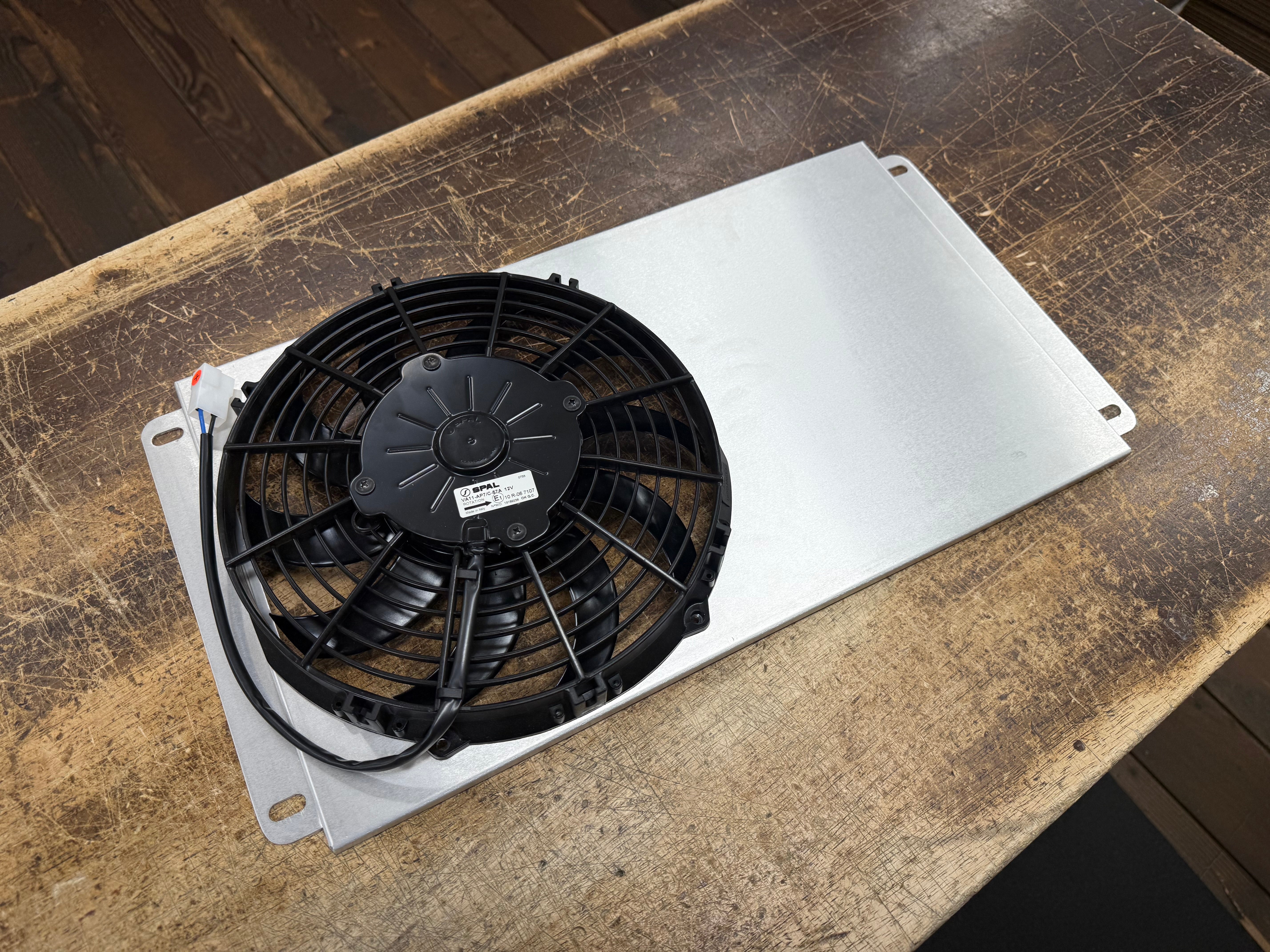

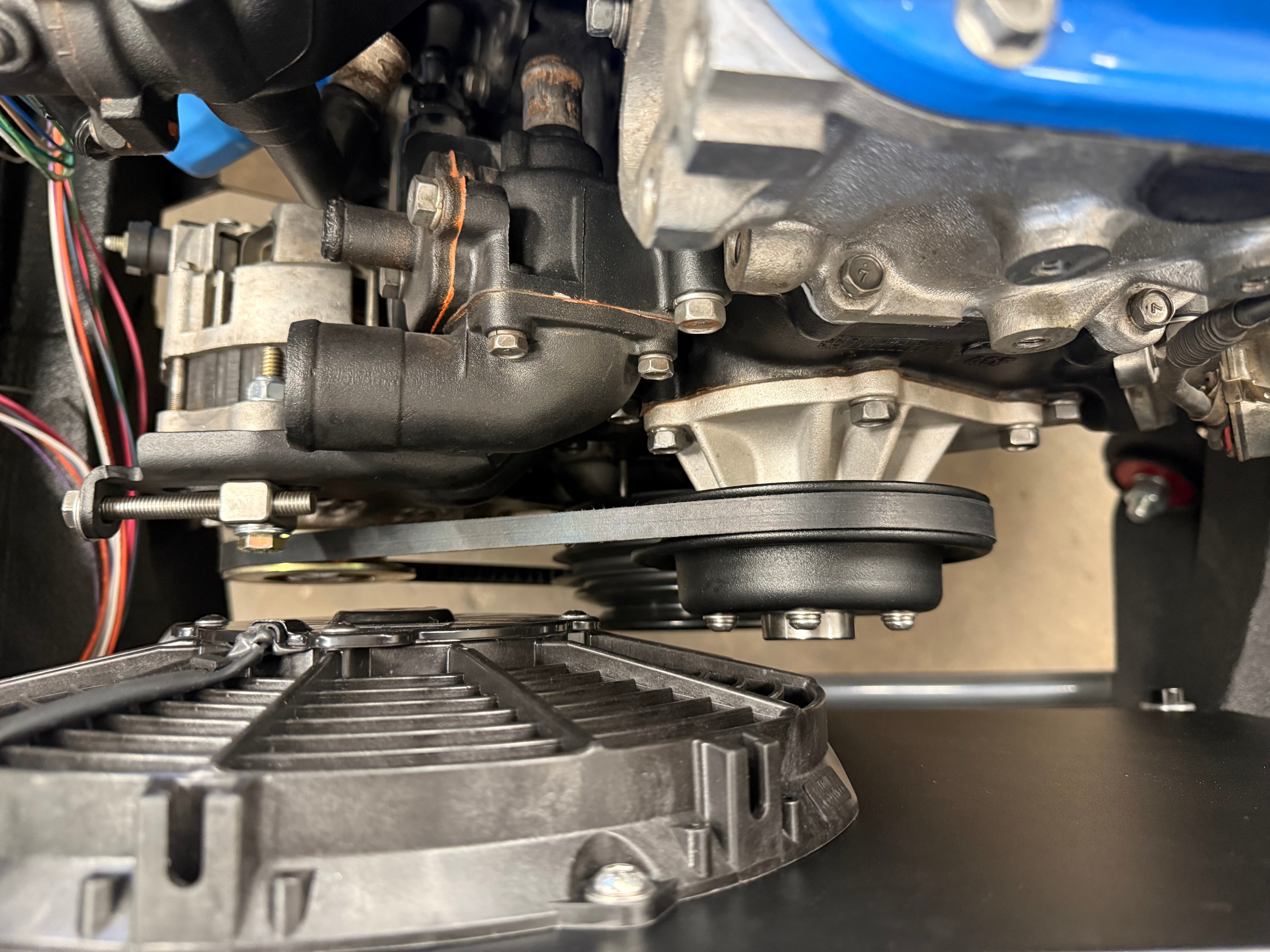

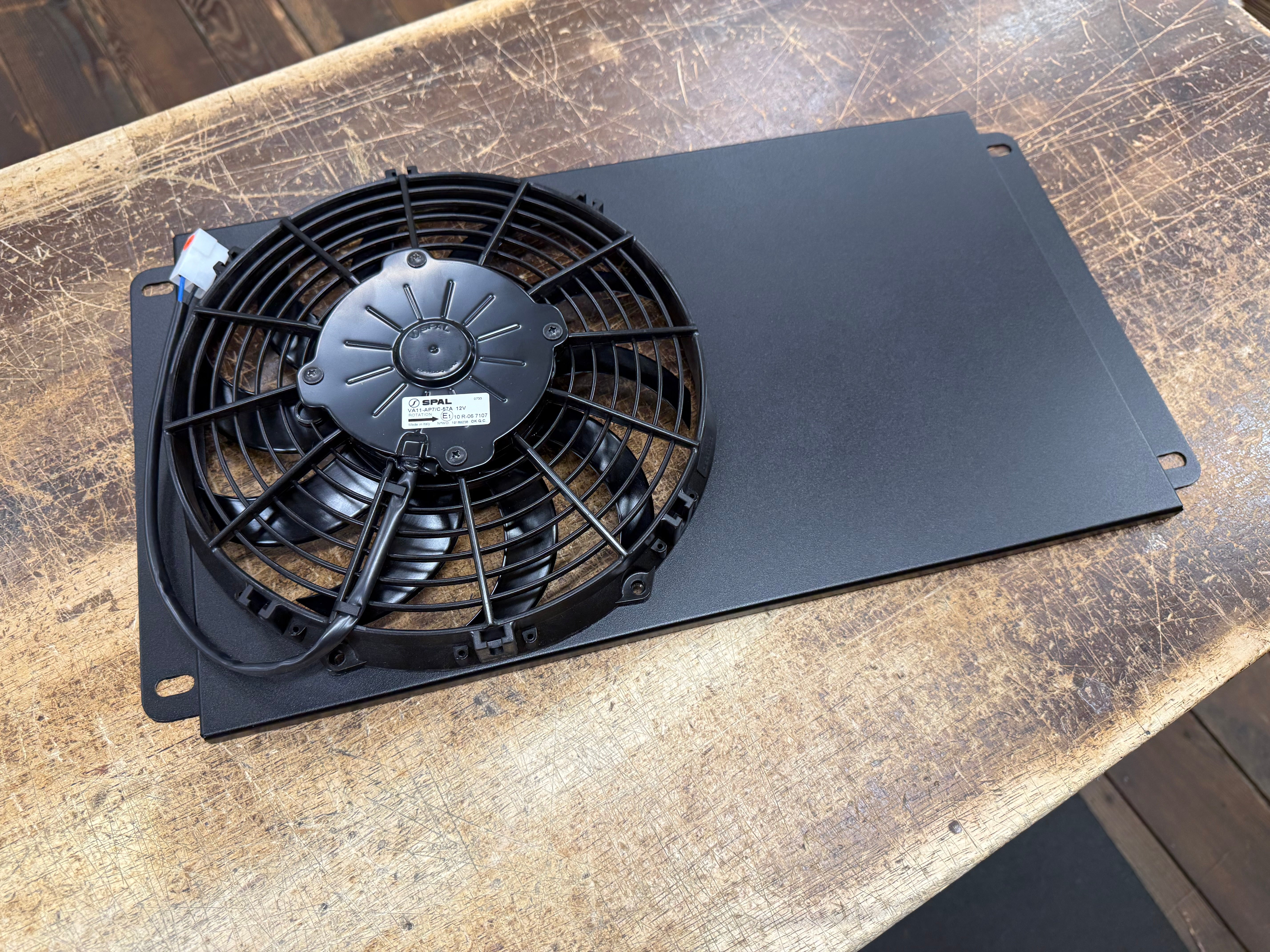

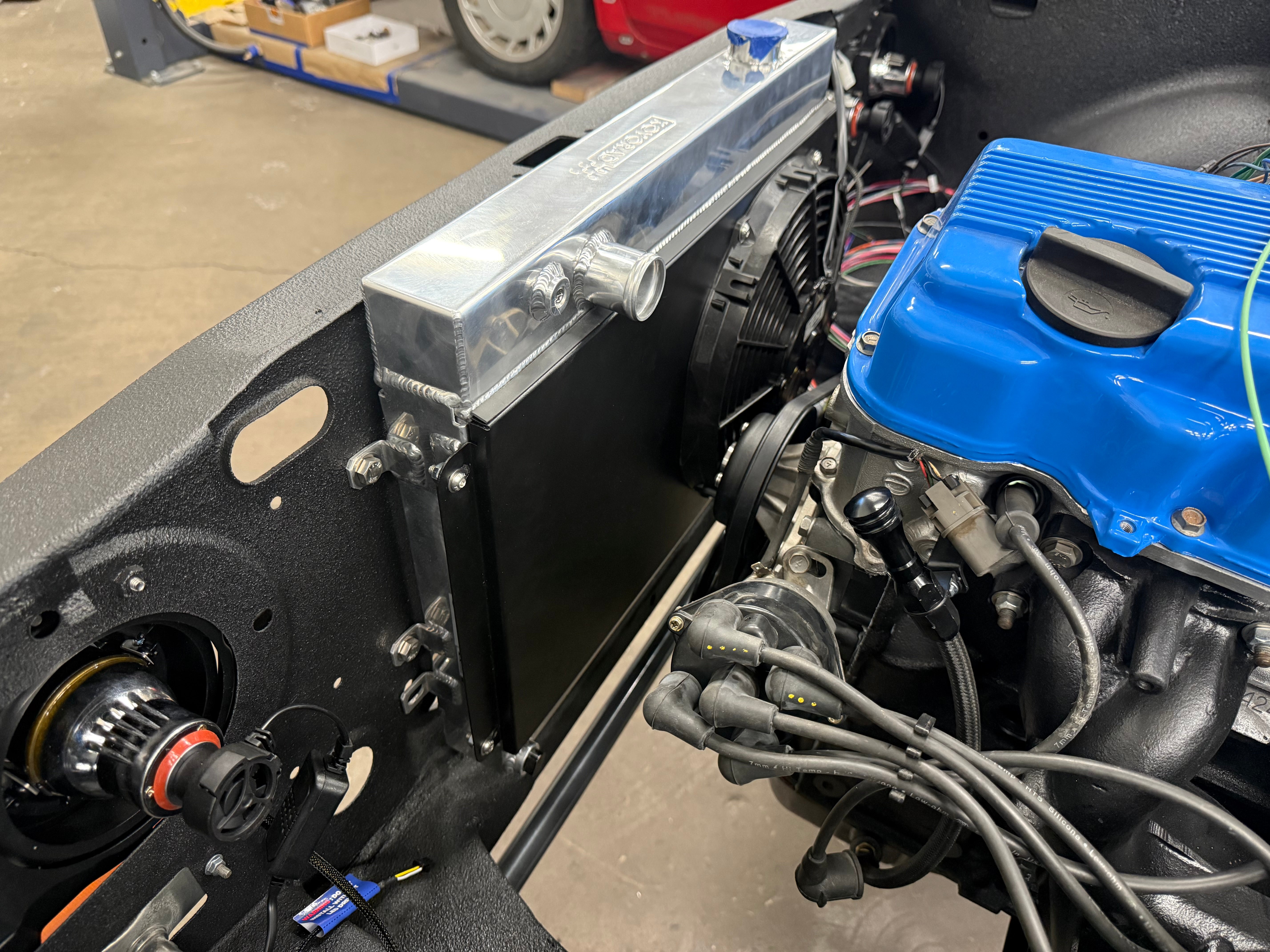

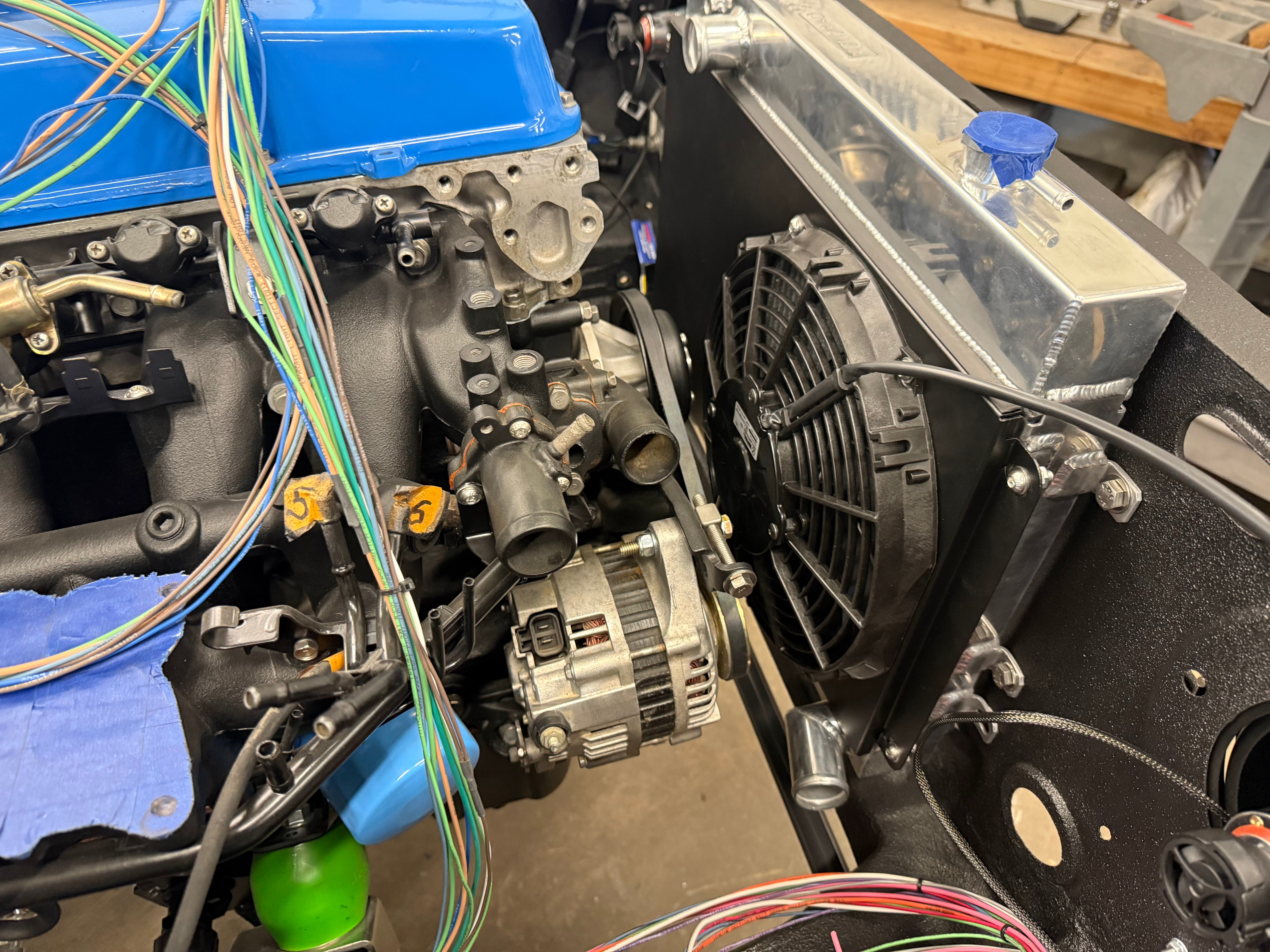

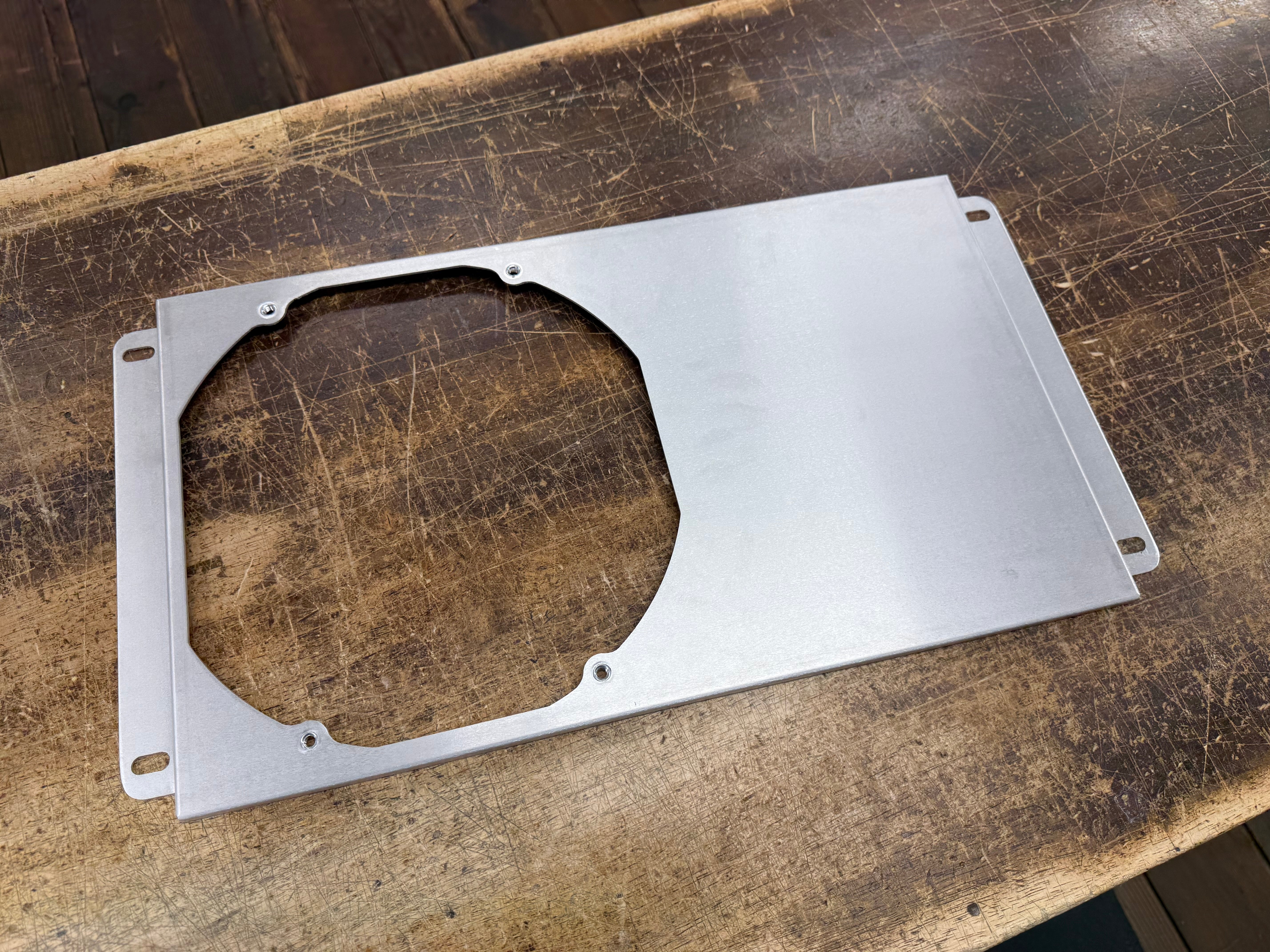

In the product pictures you can see how offsetting the fan allowed us to clear the crank pulley. Also, take a look at the video in the installation tab for a more visual representation of the measurements.

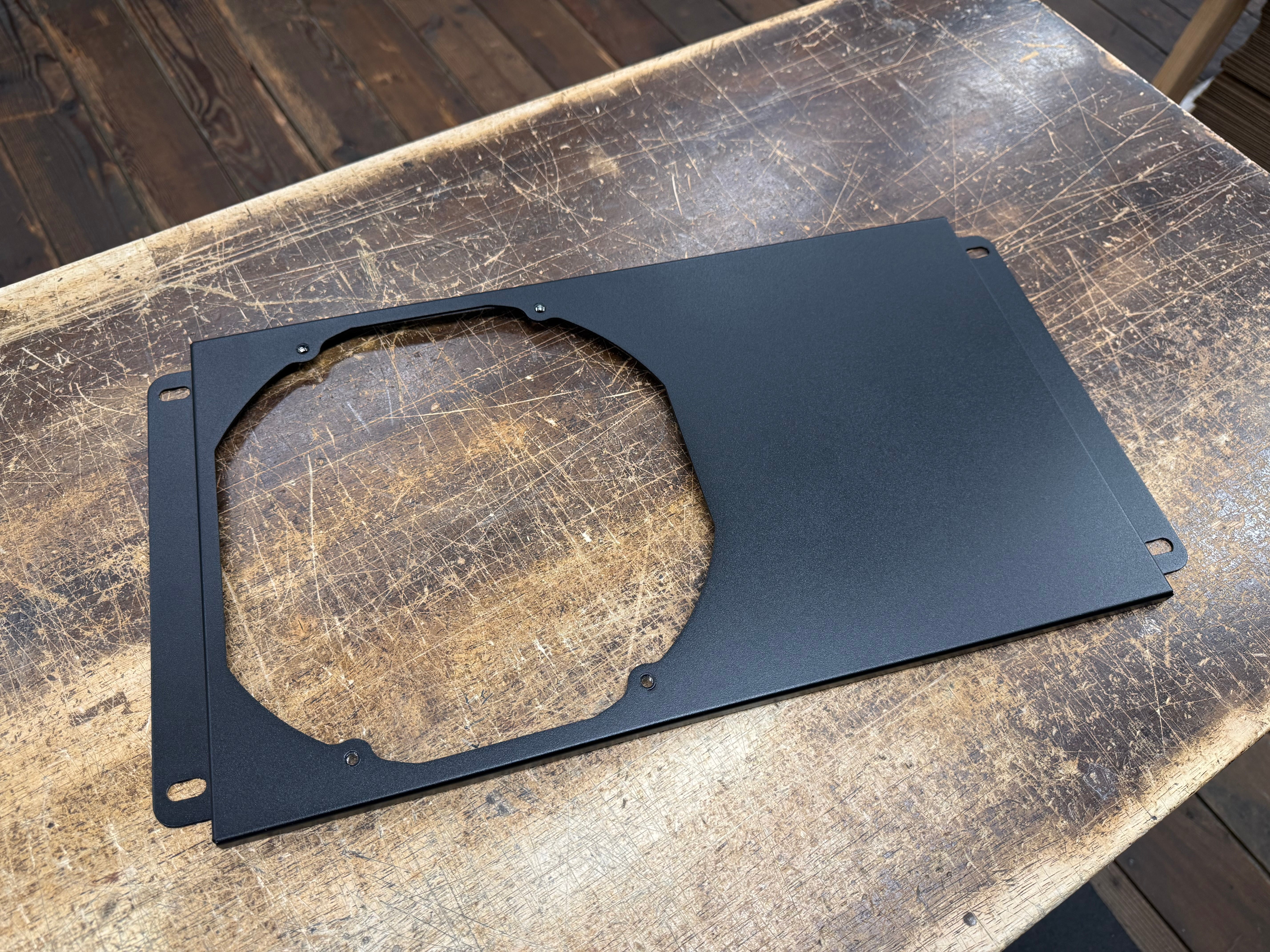

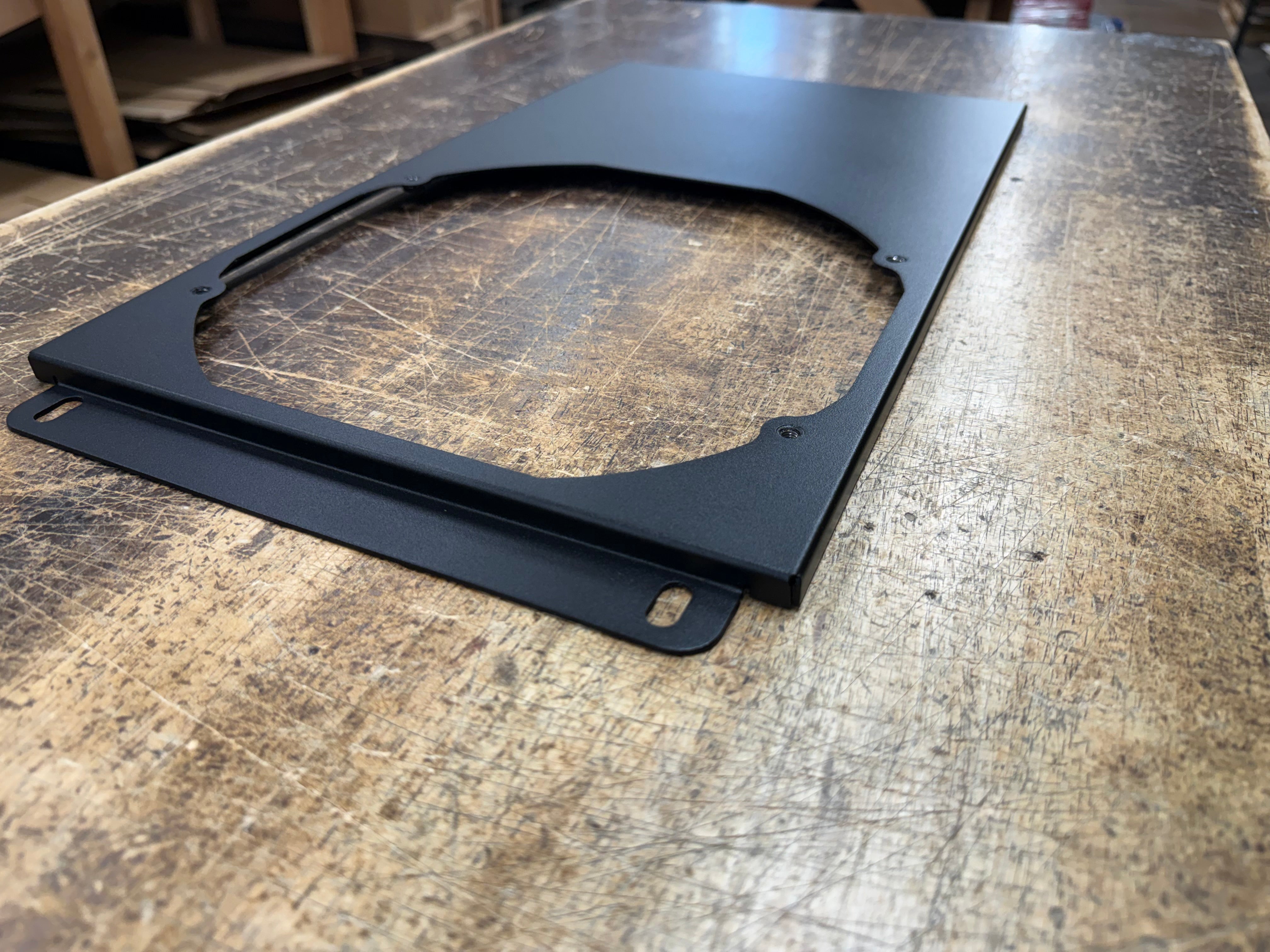

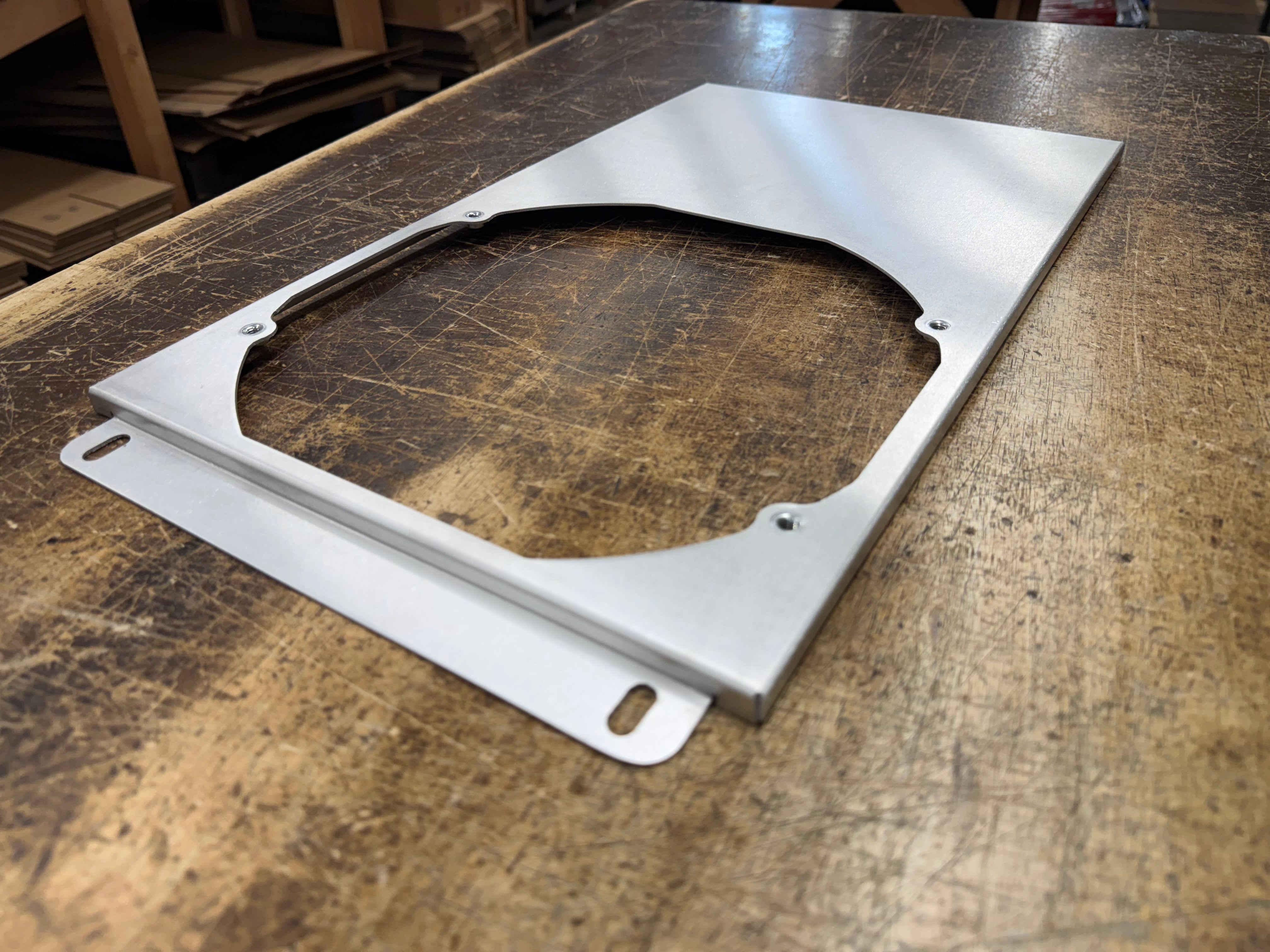

SHROUD - Stands off the radiator 0.4 inches. The raised area of the shroud is 19.5" wide by 11.5" tall. The fan cutout is all the way to the passenger side, placing the center of the fan (where it is the tallest) 5. inches in from the passenger side and 14.2 inches from the driver's side.

FAN - The outside of the fan has an 11" Diameter. The edge of the fan stands off the shroud 1.1" (1.5" total off the radiator) and tapers out at the center to 2.1" (2.5" total off the radiator)

Designed to work with the included SPAL 802 CFM 10in Low Profile Fan - Pull/Curved (VA11-AP7/C-57A)

NOTE: This kit includes the aluminum shroud, mounting hardware and the SPAL fan.
